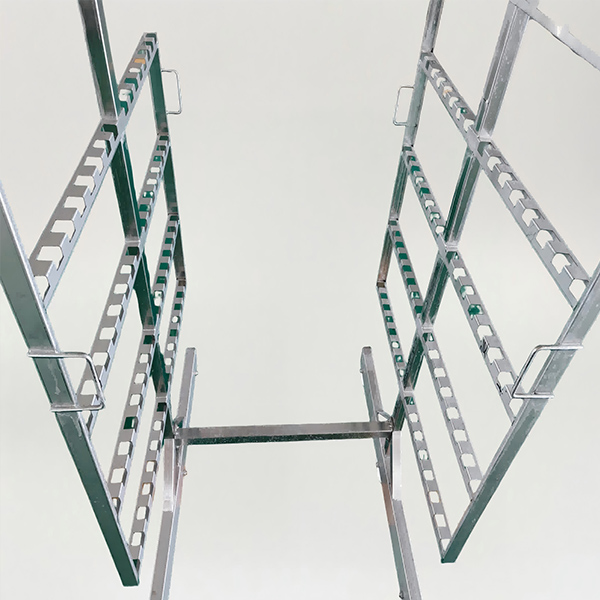

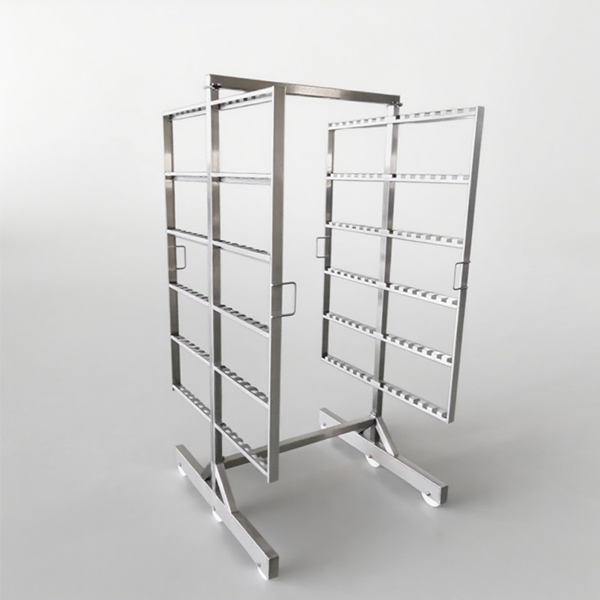

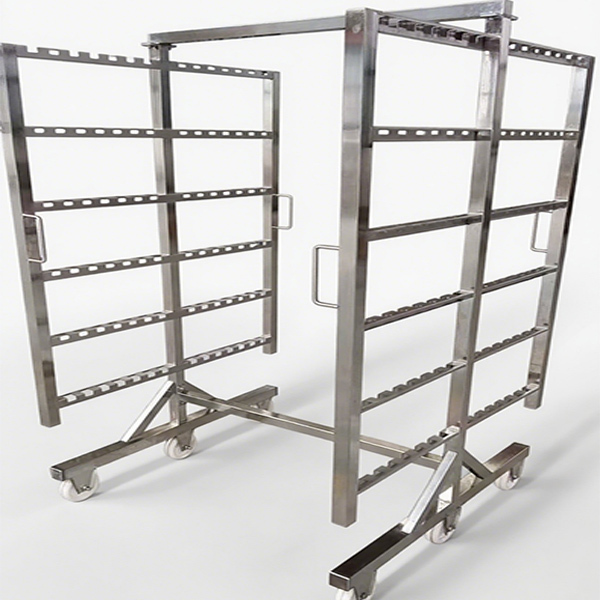

H-shape Stainless Steel Smoke Trolley

The H-from smoke trolley is the classic one and was the first of its type. It offers a stable frame construction (H-shape) made of stainless steel with 6 heat-resistant rollers (up to 130° Celsius) and 2 push handles on each side, vertically offset. The basic versions of these smoke trolleys are designed for 5 to 10 levels for smoking skewers (1,000 mm) and frames (B 940 x D 990 mm) with a total load of 500 kg.

STANDARD SMOKE TROLLEY EXECUTION IN H-FORM DESIGN

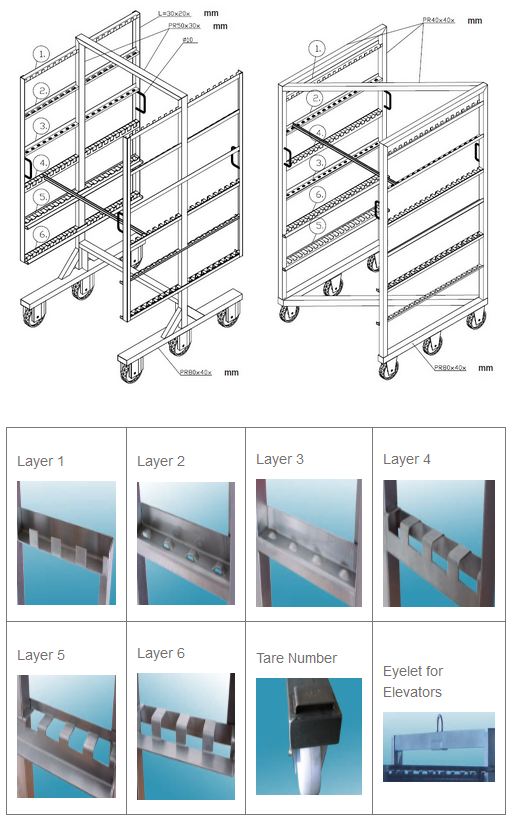

Smoke house trolleys type H-Shape with layer

For 1,000 mm smoke sticks and grids W 940 x D 990 mm

Stable frame construction 1015 x 1000 x 1950 made of stainless steel

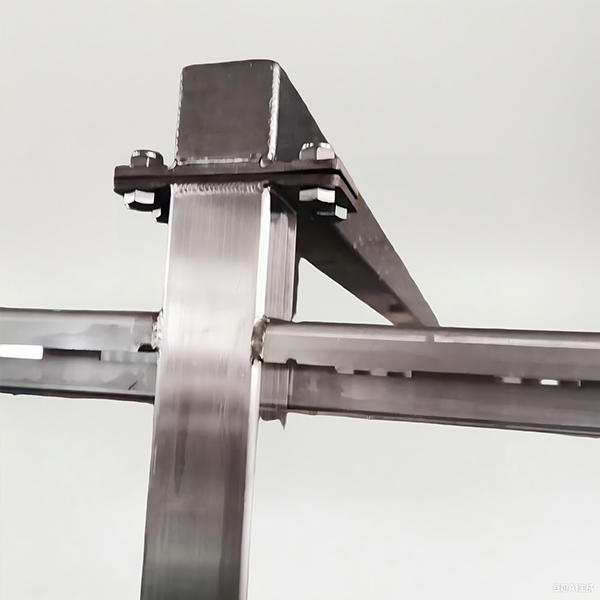

Cleanly welded and first-class stained

Lowest level 305 mm above floor

Total load max. 500 kg

2 push handles on each side, vertically offset

6 polyamide fixed rollers (diameter 150 mm), centre wheel pair elevated for tilting moment

With TARE sticker on both sides

Wheels designed for up to 130°C

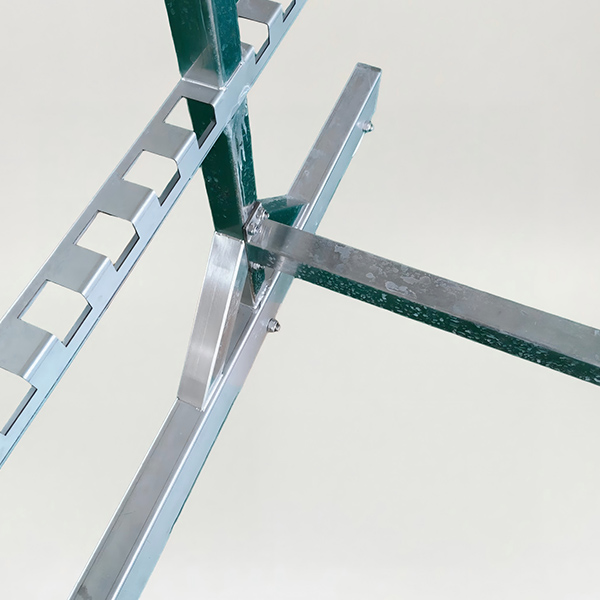

Stable wheel carrier made of profile tube 80 x 40 x 2 mm
