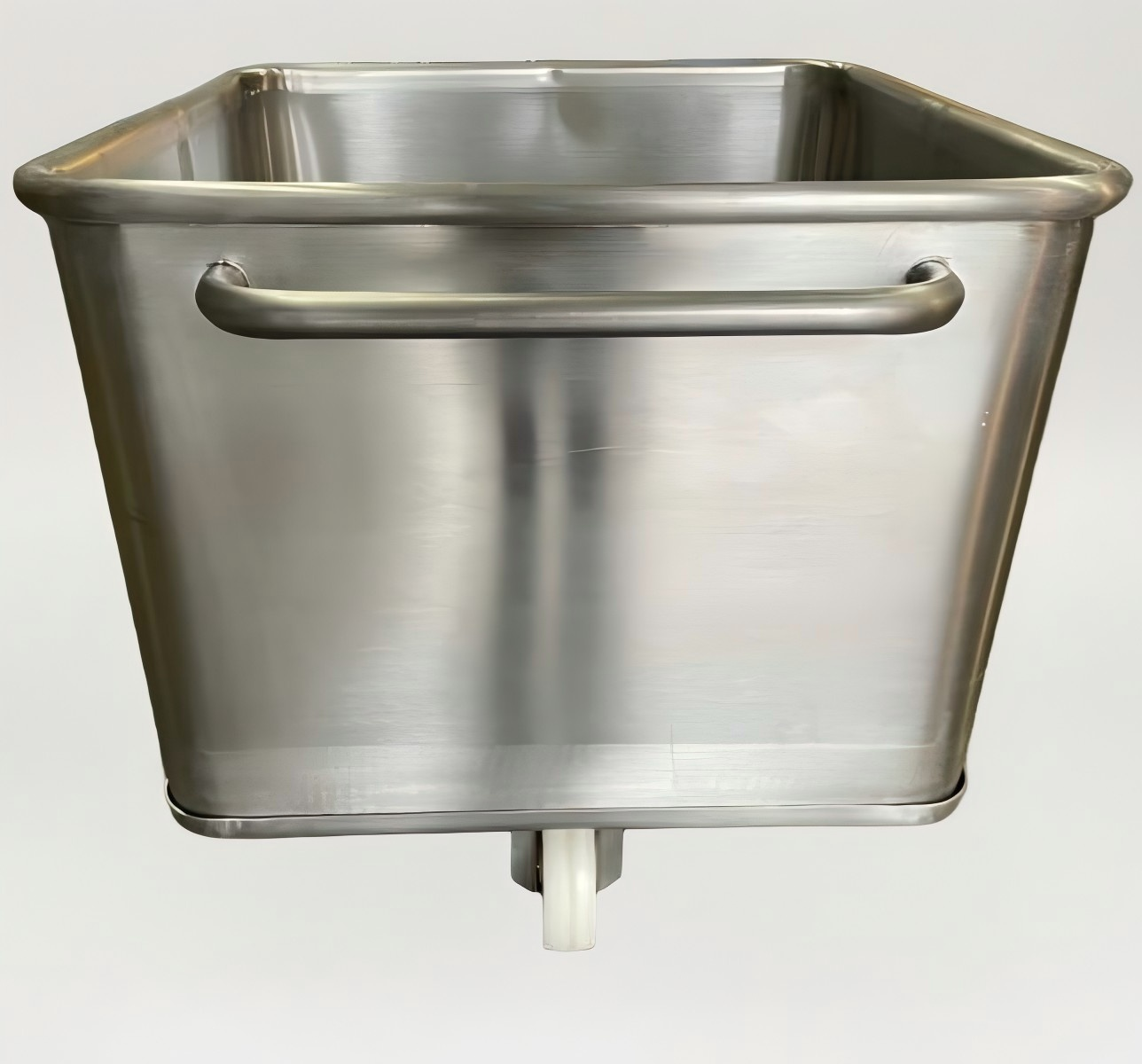

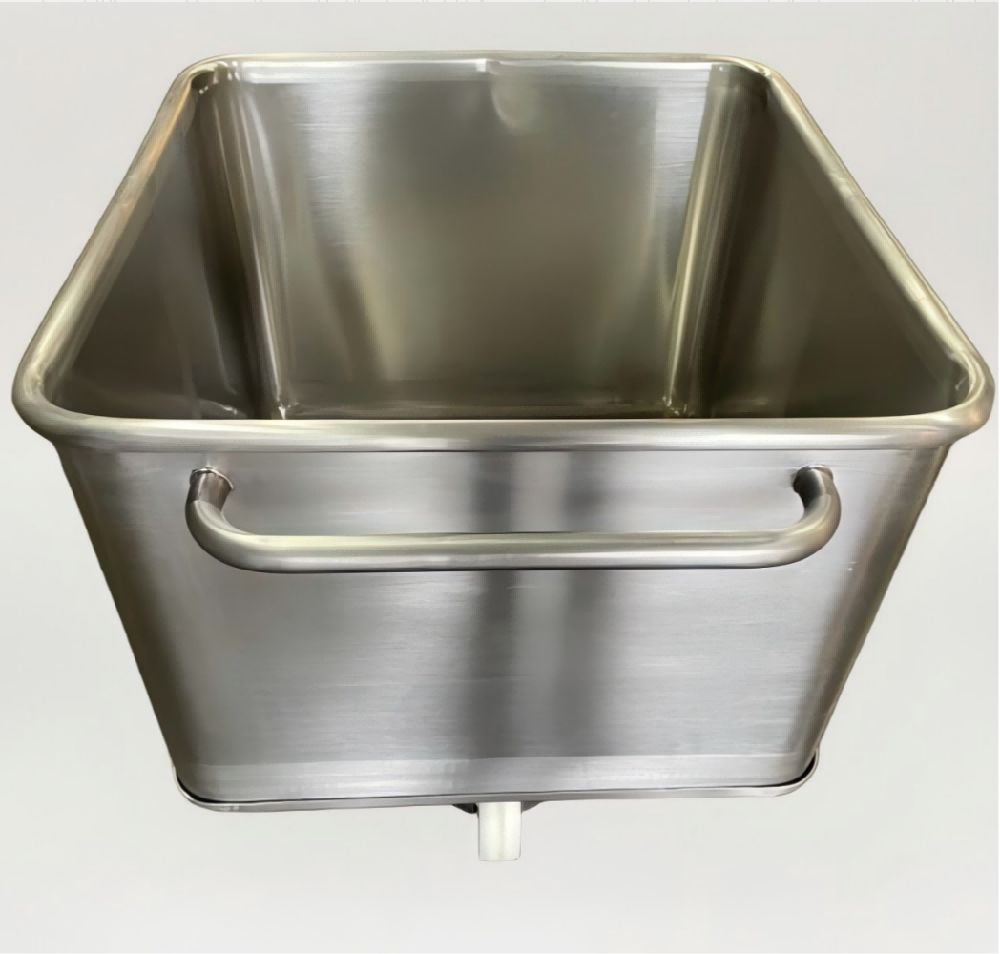

200L 304 s/s Tote Bin with detachable base for Slaughterhouses

200L 304 s/s Tote Bin with detachable base for Slaughterhouses

>>Available Size:

120L 200L 300L or Customization

>>Food-Grade 304 Stainless Steel Construction

Made from 1.2mm thick 304 stainless steel with SGS food contact certification and ISO22000 compliance.

Resistant to acids, alkalis, and corrosion, meeting HACCP slaughterhouse hygiene standards.

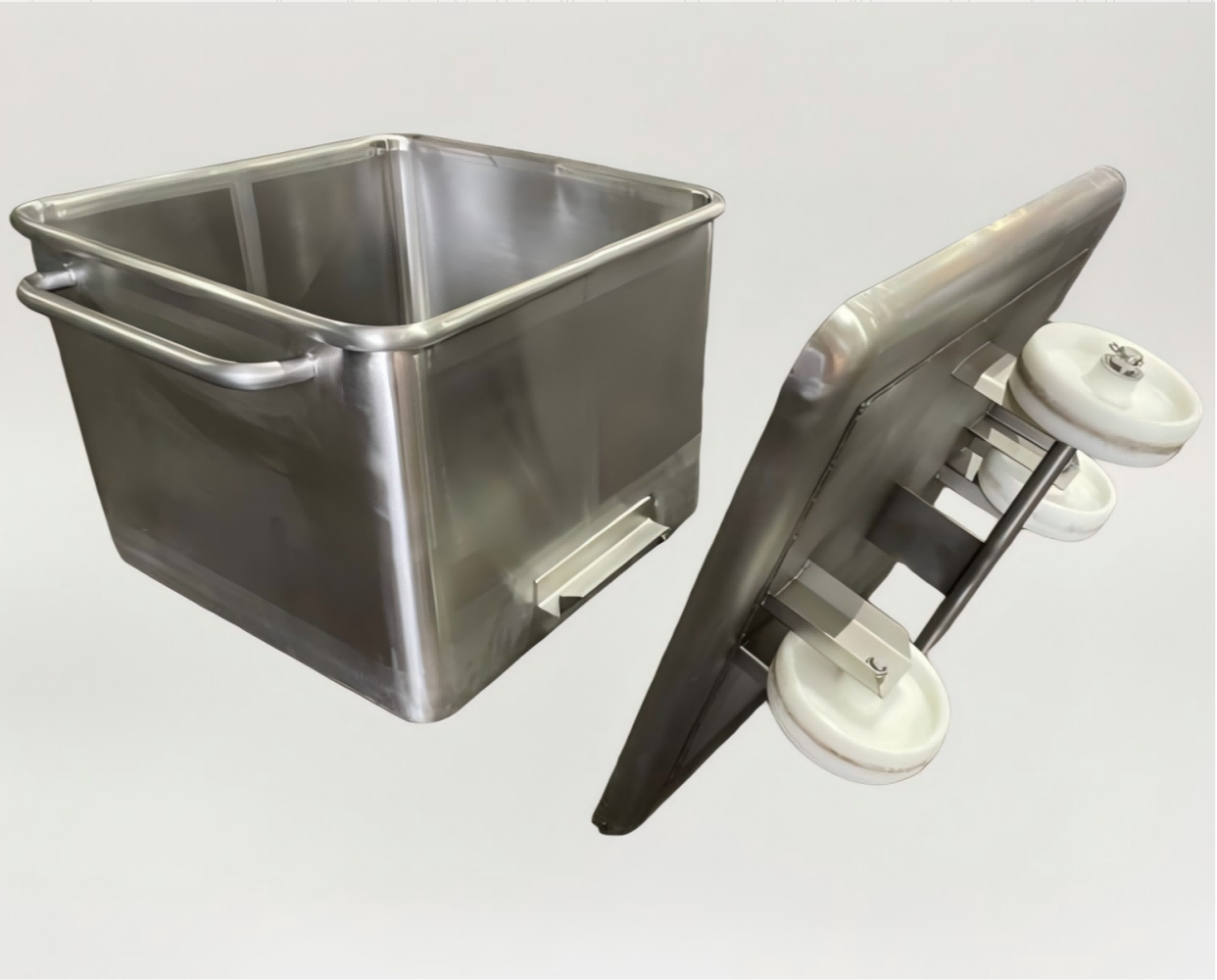

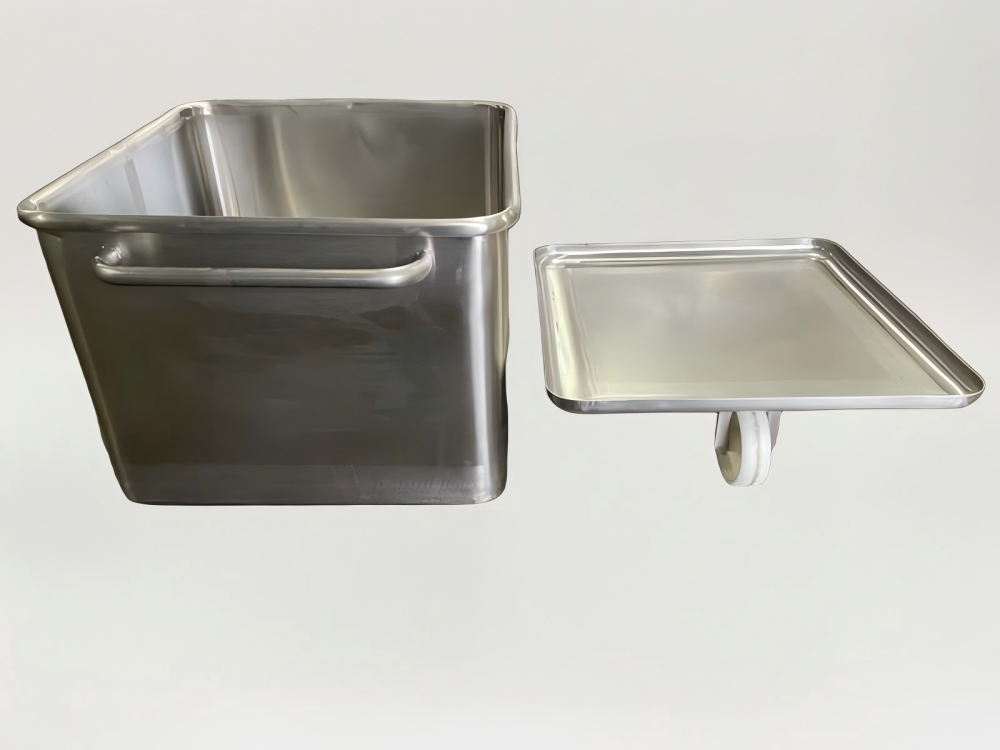

>‌>Detachable Base for Easy Cleaning

Quick-release patented design allows 5-second base removal for thorough cleaning of blood residue.

15° sloped drainage channel + optional 5mm side drainage holes (50% faster drainage.

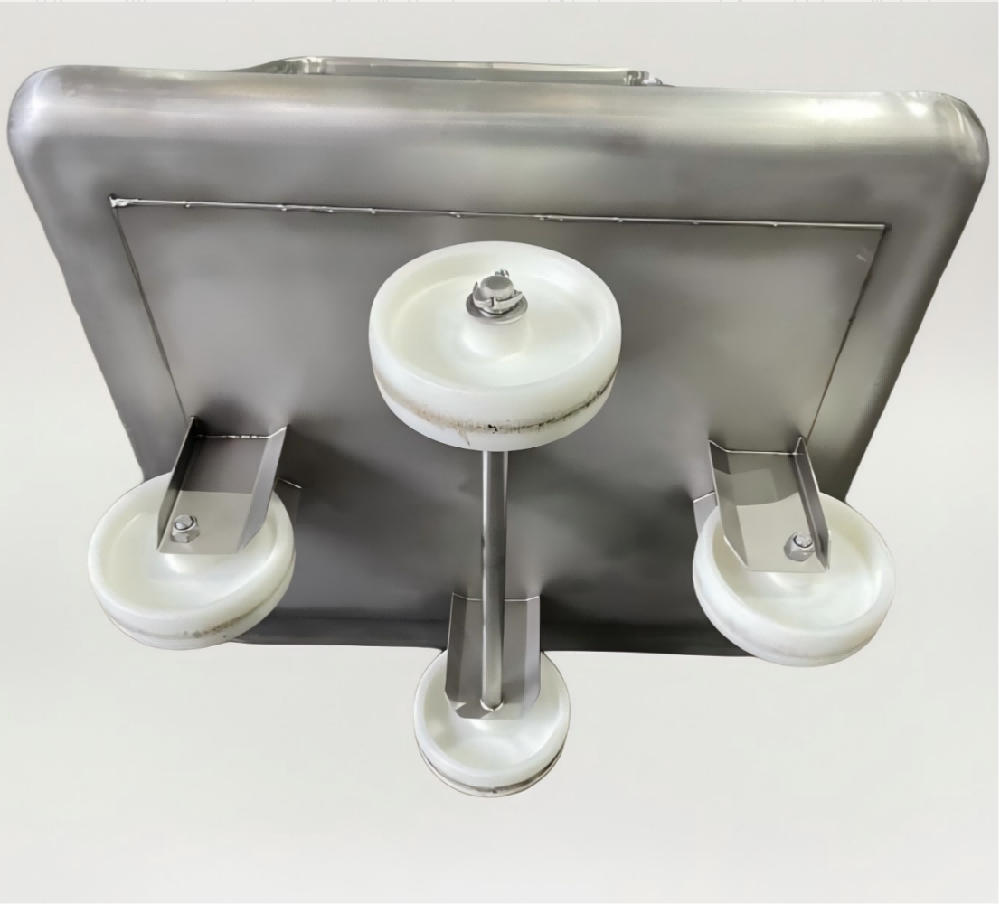

>‌>Industrial-Grade Durability & Mobility

Reinforced steel frame + anti-deformation base (600kg static load, 500kg dynamic load)

TPE silent casters with brakes (-20°C to 80°C operation, ≤45dB noise)

>>Optimized for Slaughterhouse Operations

Optional splash guard/hook accessories for different processing needs.

Laser-engraved traceability codes available for meat processing tracking.

>>Applications

Livestock (pigs/cattle/sheep) slaughter line organ storage.

Poultry processing blood/feather drainage.

Seafood processing ice water drainage.

>>Customization Available

Non-standard sizes (±10%), laser-engraved logos, FDA compliance reports upon request.‌

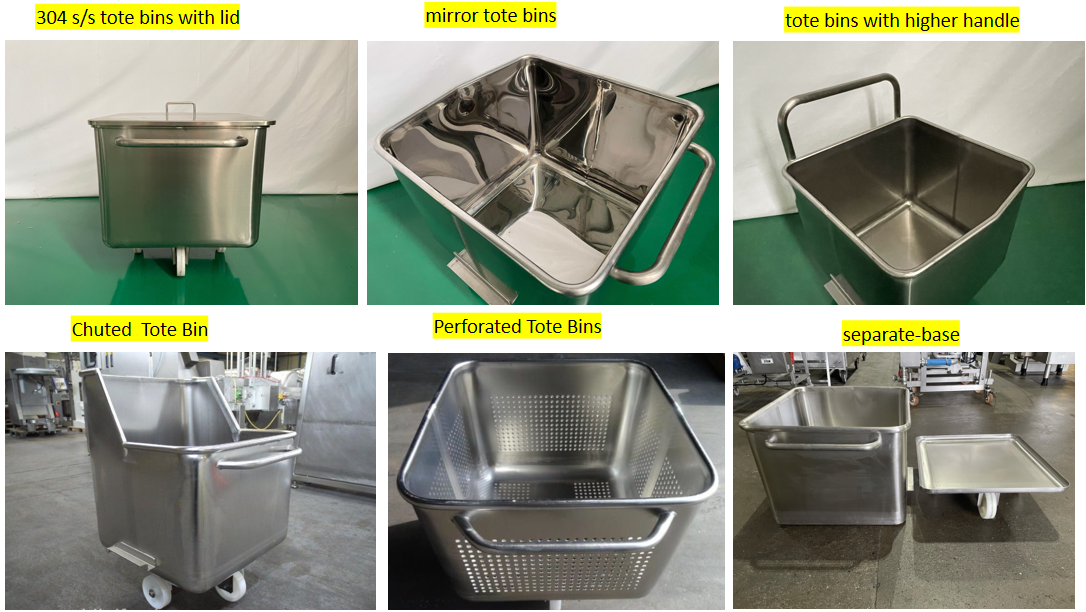

>>More Styles

Stainless steel 200 litre Tote Bin with detachable base

Detachable 5 mm thick base unit remains on the floor during lifting / tipping to ensure a hygienic lifting operation. The base unit is made of 2 mm thick steel and additionally reinforced with 3 mm thick steel

Material:

-Made of stainless steel – Type 304 (BS EN 10088 1.4301) DIN 9797

Dimensions:

- capacity: 120L,200L,300L

Options:

-Tote bin’s walls and bottom are made of 2 mm thick

-Electropolished

-Lifting lugs as standard

-Reinforced axle with diamond wheel pattern, for easy manoeuvrability

-Wheels: ? 150 mm – Polyamide PA6

-Push/Pull handle

Regular Packaging Methods for Stainless Steel Carts

The packaging of stainless steel carts must balance anti-collision, scratch resistance, moisture protection, and transportation convenience. Specific methods are usually adjusted based on product specifications, transportation distance (domestic/cross-border), and customer requirements. Common solutions are as follows:

>>Basic Protective Layer (Core Scratch Resistance)

The main body of the cart (frame, tabletop, handle, etc.) is first fully wrapped with PE protective film/bubble film, with key coverage on the stainless steel surface to prevent scratches caused by vibration during transportation.

If the cart is equipped with detachable components (such as laminates, small wheels), these components will be individually wrapped with EPE foam or bubble film to prevent collision damage between parts.

>>Inner Packaging (Reinforcement and Partitioning)

Small carts (e.g., household/light industrial models): Mostly packaged in 5-layer corrugated cartons. Inside the carton, corrugated cardboard is used to separate component areas, or foam blocks/air columns are filled for fixation to prevent components from shaking inside the carton.

Large/heavy-duty carts (e.g., for slaughterhouses, warehouses): May use plywood crates (complying with export fumigation standards, such as IPPC marking). The main body of the cart is fixed with wooden battens inside the crate to ensure stable load-bearing, making it especially suitable for cross-border sea transportation or long-distance land transportation.

>>Special-Scenario Packaging (Customized Requirements)

Moisture protection needs: When transporting to humid areas or by sea, desiccants will be placed inside the packaging, or an additional waterproof woven bag will be wrapped outside the PE film.

Export compliance: The packaging will be labeled with clear product information labels (name, specification, quantity), warning signs (e.g., "Handle with Care", "Keep Dry"), as well as customs codes and shipping marks required for export. Plywood crates must comply with the quarantine requirements of the destination country (such as non-wood packaging declaration or fumigation certificate).
